Female compression fittings deliver a straightforward, reliable method for connecting pipes and tubing. They do away with the need for solder or welded joints. This article explores the essence of female compression fittings, showing how the compression nut and ferrule help form a tight seal. It also emphasizes their importance in both plumbing and HVAC applications.

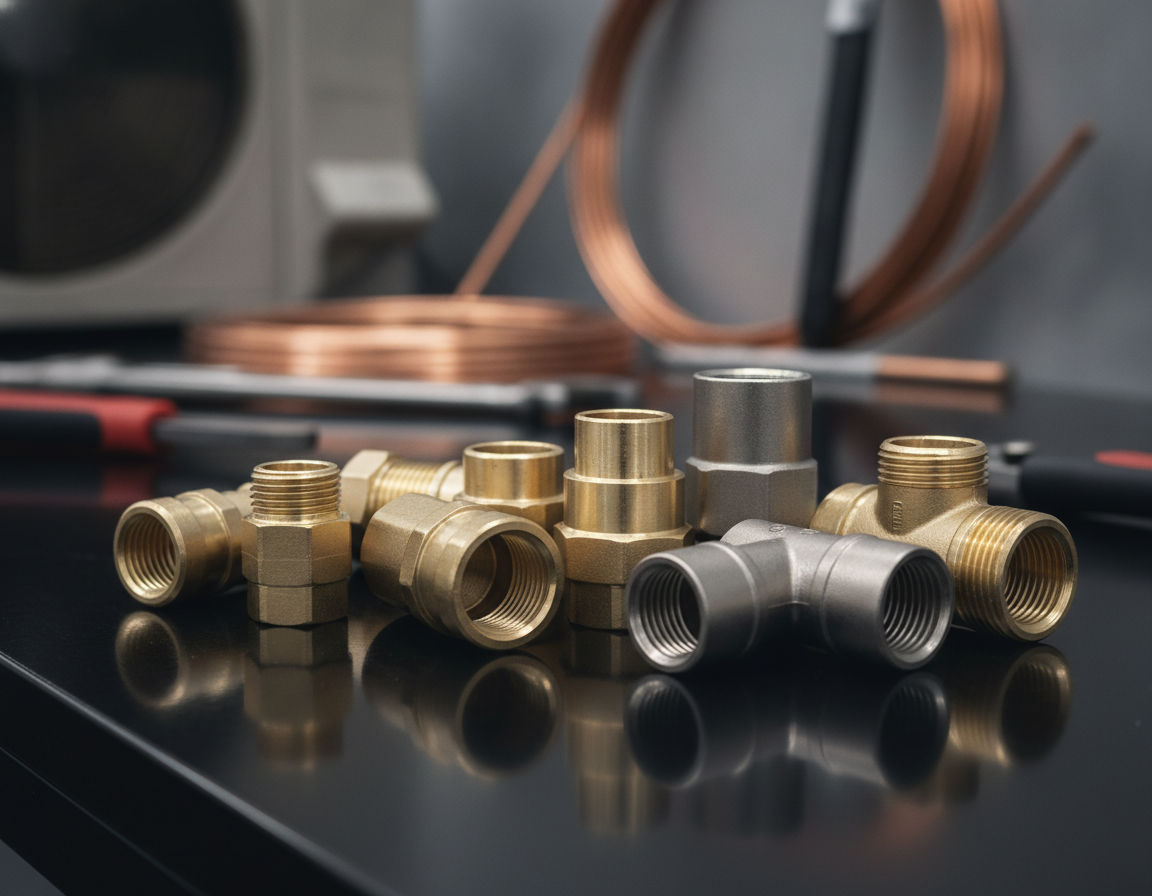

Female Compression Fitting
Selecting high-quality pipe fittings can significantly reduce energy losses. That helps prevent refrigerant or water leaks, which can negatively affect the environment. HVAC systems, which include components like compressors, condensers, expansion valves, and evaporators, require robust connections. Selecting the appropriate female compression fitting and compatible materials—such as brass, copper, stainless steel, PVC, or PEX—is essential for long-term system performance.
In many plumbing systems, PEX or PVC with compression fittings are often preferred for their ease of service and low heat exposure. By contrast, refrigeration lines require fittings that can handle thermal fatigue and keep a seal across a wide temperature range. InstallationPartsSupply.com and its product lines serve these needs, supplying common sizes and parts such as ferrules and compression nuts.
Quick Summary
- A Female Compression Fitting uses a compression nut and ferrule to seal without soldering.
- Using the proper fitting material—brass, copper, stainless, PVC, or PEX—prevents corrosion and failure.
- Quality fittings minimize energy loss and limit refrigerant or water leaks in HVAC and plumbing systems.
- Compression fitting selection resources and suppliers like InstallationPartsSupply.com streamline part selection.
- Check ferrules and tighten per manufacturer torque to ensure a long-lasting seal.
Understanding Compression Fittings And HVAC Vs Plumbing Applications
Compression fittings connect pipes and tubing without solder or welding. They work well with copper, PEX, PVC, and stainless lines where heat or flame is not practical. Many installers purchase parts from Installation Parts Supply to help maintain consistent quality and fit.
What Compression Fittings Are And How They Seal
A compression fitting relies on a nut and a ferrule olive pressed against the pipe by the fitting body. The tightening action compresses the brass ferrule or sleeve, which grips the outer pipe and forms a seal. This mechanical action demonstrates the common question of what is a compression fitting by showing how mechanical compression creates a leak-tight joint.
Key Differences Between HVAC And Plumbing Fittings
HVAC fittings must tolerate refrigerants, wider temperature swings, and thermal fatigue. Plumbing fittings are designed around potable water, wastewater, and pressure from building systems. In the HVAC-versus-plumbing comparison, selection depends on media, service temperature, and pressure ratings.
HVAC equipment such as split systems, VRF, and rooftop units often use copper fittings and brazed joints for refrigerant lines. Plumbing applications often favor PEX compression and PVC for drains, where solvent welds or crimp systems are common.
Compression Fitting Materials: Brass, Copper, Stainless Steel, PVC, And PEX
Copper fittings deliver excellent thermal conductivity and corrosion resistance. Brass parts such as ferrules offer resistance to wear and are common in many compression fittings. Stainless steel is suitable for corrosive or high-pressure environments.
PEX compression works well in domestic water lines because it withstands freeze-thaw cycles and is flexible. PVC continues to be a low-cost option for drains and certain chilled-water circuits when pressure is low.
| Fitting Material | Primary Use | Advantages | Restrictions |
|---|---|---|---|
| Copper Material | Refrigerant piping and potable water | Thermally conductive, durable, and solderable | Higher price and possible denting or damage |
| Brass | Compression nuts, ferrules, fittings | Strong machinability with corrosion protection | May react with incompatible metals |
| Stainless steel | Demanding corrosive applications | Strong, durable, and resistant to corrosion | Costly, harder to machine |
| PEX Pipe | Domestic water systems | Freeze-resistant with flexible handling | Needs compatible PEX compression hardware |
| PVC Components | Drains and low-pressure chilled water | Inexpensive, easy to install | Not for high temperature or pressure |
Why Proper Fitting Selection Affects Energy Efficiency And Leak Prevention
Selecting the proper fitting lowers leak risk and maintains system pressure. For refrigerant circuits, a poor joint can release refrigerant and lower efficiency. Proper seals and compatible materials cut maintenance and lower energy waste.
Selecting the correct ferrule olive and matching copper fittings or PEX compression hardware helps avoid galvanic corrosion and thermal fatigue. This method extends service life and keeps HVAC and plumbing systems running efficiently.
Female Compression Fitting Basics
A female compression fitting seals a pipe or tube end when a nut compresses the ferrule olive against the fitting body. This joint allows for tight connections without soldering, making it common in plumbing and HVAC. Unions and adapters enable quick disassembly for service or instrument changes.
Basic Definition And Common Fitting Styles
A typical assembly includes a female compression nut, a ferrule olive, and the fitting body. The nut threads onto the fitting body and compresses the ferrule to grip the tube. Many systems use unions, straight fittings, or elbow bodies to adapt direction and access during maintenance.
Materials And Compatibility
Brass and copper are standard for refrigerant fittings and hot-water lines due to their ability to manage thermal cycles and resist deformation. Stainless steel is used in high-pressure or corrosive environments. PVC and PEX are used for condensate and domestic water runs, but they require proper inserts or specific ferrules for secure joints.
Where Female Compression Fittings Are Commonly Used
For plumbing systems, female compression fittings link stops, valves, and supply lines without solder. For HVAC systems, technicians use them on refrigerant fittings between compressor, condenser, and evaporator where service access is critical. Instrumentation systems and gas lines commonly need compression parts for leak-tight, serviceable connections.
Comparison With Male Compression Fittings And Adapters
A female fitting accepts a male end and form the receiving thread, while a 3 8 Male Compression Fitting provides that mating male component for tubing or ports. A 3/8 Valve Adapter lets technicians interface service valves and gauges to the system. Matching materials helps prevent galvanic corrosion and keeps joints reliable under pressure and thermal change.
| Part | Usual Material | Common Use | Service Note |
|---|---|---|---|
| Female compression nut | Brass alloy | Supply lines and valve connections | Replace when rounded, cracked, or damaged |
| Compression ferrule | Brass and stainless options | Forms a seal on copper, brass, and some PEX | Often not reusable after compression |
| Main fitting body | Brass or stainless steel | Refrigerant fittings, instrumentation | Match to refrigerant type and pressure rating |
| 3/8 Male Compression Fitting | Brass, copper | Small-diameter line connection to female ports | Check thread and seat compatibility |
| 3/8 service valve adapter | Brass | Gauge and manifold connections | Match seals to refrigerant fittings |
| Installation Parts Supply source | Various | Supplier for matched fitting components | Use compatible replacement parts for durability |
Fitting Types, Sizes, And Adapters For HVAC And Plumbing Work
This section explores the various fitting types, sizes, and adapters essential for plumbing and HVAC projects. Contractors select couplings, elbows, unions, and adapters to manage line routing, component isolation, and service access. Choosing these components significantly impacts system performance, including pressure rating, temperature limits, and reliability.
Compression couplings and unions allow the creation of removable joints for maintenance and testing. Straight couplings are useful for straight connections, while compression unions are preferred for components that need to be disconnected without disrupting the line. For short runs, a 3/8 Compression Coupling is often used in instrumentation and refrigeration applications.
Elbows and adapters help with tubing routing around obstacles and for connecting different types of fittings. A 3 8 Male Compression Fitting helps connect to a female port or adapter, facilitating the integration of service valves and gauges. Installation Parts Supply catalogs provide a wide range of these components, ensuring quick access on job sites.
Choosing the right size is critical, depending on the tube’s outside diameter and the ferrule and nut set. Make sure the female compression fitting size matches the tube OD to prevent leaks. When working with 3/8″ lines, verify ferrule compatibility and torque specifications. Also check the system’s maximum pressure and temperature ratings before making a final selection.
Specialty parts such as the Max Adaptor and 3/8 Valve Adapter are made for connecting gauges, service ports, and small refrigerant lines. These parts help simplify the process of charging and diagnostics in HVAC systems. In compact HVAC systems, a 3/8 Valve Adapter is commonly used to link manifold hoses to service valves on compact systems.
Material choice balances between durability and corrosion resistance. Stainless steel provides strong corrosion resistance and durability, making it suitable for harsh environments. Brass and copper work well in refrigerant circuits and heat transfer lines due to their balance of machinability and corrosion protection. PVC and PEX can be used in low-pressure condensate and water lines but not for high-pressure refrigerant service.
The environmental effect of fittings depends on leak prevention and recyclability. Well-sealed metal fittings can lower refrigerant emissions and can be recycled at the end of their life. Choosing quality parts from dependable suppliers reduces failures and minimizes long-term environmental risk.
Use the comparison below to select between common options by application, pressure, temperature, and reusability.
| Connection Type | Usual Application | Max Pressure Typical | Service Temperature Range | Reusability |
|---|---|---|---|---|
| Brass coupling | Instrumentation, small water lines, refrigerant | As high as 3,000 psi when specified | Approximately -65°F to 250°F | Limited, because ferrules are often replaced |
| Compression union in brass or stainless | Serviceable joints, maintenance access | Around 2,500 psi depending on spec | Minus 65°F to 300°F | High, because it is designed for disconnects |
| 3/8-inch compression coupling | Refrigerant lines, instrumentation, small plumbing runs | System dependent; confirm rating | Review material specs before HVAC service | Moderate; often replaced during servicing |
| 3 8 Male Compression Fitting | Adapter to service valves and gauges | Depends on refrigerant-rated brass or stainless construction | Appropriate for typical HVAC temperature cycles | Reusable if inspected and intact |
| Brass/stainless Max Adaptor | Gauge and valve interface coupling | High when designed for service-tool use | Designed around HVAC service cycles | Built for repeated connection and removal |
| PVC/PEX fittings | Low-pressure water and condensate lines | Low; not for refrigerant | 32°F to 140°F typical | Reusable in some systems; limited life under UV |
When ordering, check Installation Parts Supply or other reputable distributors for part numbers, material options, and pressure ratings. Ensure that the chosen 3/8 Valve Adapter or Max Adaptor matches both the tubing OD and the service fitting type to avoid mismatches on site.
How To Install And Maintain Compression Fittings
Proper compression fitting installation starts with clean, square pipe ends and the right parts. For HVAC refrigerant lines, use copper and brass. On chilled water or condensate runs, PVC or PEX is best. Always follow manufacturer specs and ASME B31.5 to minimize energy loss and leaks.
Installing compression fittings correctly
1. First, cut and deburr the tube to a square face. 2. Then slide the nut and ferrule onto the pipe in that order. 3. For PEX or thin-wall plastic tubing, insert pipe inserts to keep the tube round before assembly. 4. Finger-tighten first the nut, then use the two-wrench technique to finish the joint.
Useful installation tools and methods
Use a two-wrench method to hold the fitting body and turn the nut to prevent tube twist. Use torque guidance from the fitting maker or Installation Parts Supply when available. Typical practice is to snug by hand, then add a limited number of wrench turns.
Where pipe inserts should be used
Pipe inserts are essential for soft plastic tubing like PEX or thin-wall PVC to prevent ovalization and ensure a leak-free seal. Avoid inserts in solid copper or thick-walled metal tubing, where inserts can interfere with proper ferrule compression.
Common mistakes and ferrule removal
Do not under-tighten or over-tighten. Under-tightening leaks; over-tightening deforms the ferrule and can make ferrule removal difficult. Ferrules are usually single-use; plan to replace them when disassembling a joint.
Ferrule removal steps
Shut off the supply and relieve pressure first. Secure the fitting body with one wrench while loosening the nut with a second. Remove the nut and slide out the ferrule. When the ferrule is seized, apply penetrating oil, use a ferrule puller, or carefully cut the ferrule off without nicking the pipe.
How to install a 3/8 Valve Adapter
For small lines like a 3/8″ valve connection, prepare the tubing the same way and follow the two-wrench technique. Many 3/8 Valve Adapter installation steps mirror larger fittings but require careful attention to torque guidance to avoid crushing the tube or the adapter threads.
Inspection and maintenance
When pressure is restored, inspect joints for weeps and tighten slightly if needed. Add routine checks for corrosion and thermal fatigue, particularly on refrigerant circuits. Try not to locate compression joints where vibration will loosen them over time.
| Stage | Required Action | Installer Tip |
|---|---|---|
| Prep Work | Prepare a clean, square, deburred pipe end | Use a good tubing cutter and deburring tool |
| Fit-Up | Place nut and ferrule in order before fitting assembly | Use inserts where plastic tubing may deform |
| Tighten | Snug by hand before using two wrenches | Use the maker’s torque recommendation |
| Testing | Pressurize the system and look for weeps | Check for small leaks and tighten slightly when appropriate |
| Service | Check routinely and change ferrules when joints are opened | Have spare ferrules and nuts available from Installation Parts Supply |
Conclusion
Selecting the proper compression fitting is essential for plumbing and HVAC work. The fitting material, whether brass, copper, stainless steel, PVC, or PEX, must match the service type. That supports reliability and extends system life. Well-matched parts and sound installation help cut energy losses and refrigerant leaks, preserving performance and environmental health.
Compression fittings offer a leak-free, solder-free solution. They rely on a nut, ferrule, and body. To create a reliable seal, follow these steps: square-cut and deburr the tubing, use the two-wrench technique, and replace ferrules when reused. These steps support long-lasting, leak-tight connections in various applications, from copper piping to instrumentation.
For particular installations, such as 3/8″ lines, 3/8 Compression Coupling, or 3/8 valve adapters, it is important to match size and pressure ratings to the task. Quality components from trusted suppliers are key. Installation Parts Supply guidance can help in finding compatible fittings and adapters. Regular inspections and proper selection maintain system efficiency and compliance.
Overall, dedicating time to material selection and correct assembly is important. That helps create durable, leak-free connections. It contributes to optimal performance, fewer repairs, and less environmental harm.
